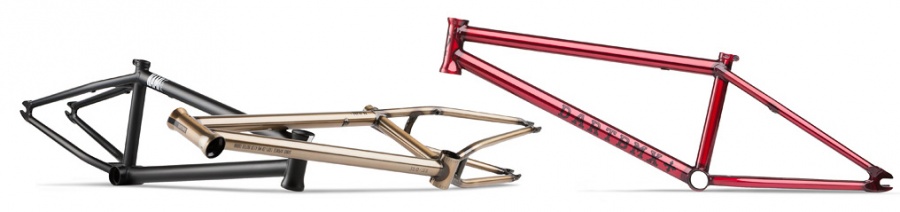

Third edition of very popular Dawid Godziek’s signature frame comes now also in a very special red clear coated finish. The frame has strong tubes made from famous Japanese Sanko Cr-Mo steel and comes with integrated gusset under the head tube, long seat tube and chain tensioners built-in dropuots. Nami v.3 comes in three different sizes, which varies not only in head tube length, but also every size has different chainstay length. It makes the frame more universal in order to fit all the riders’ needs within every style of riding (dirt, street, park). Now available in three different colors to: Red clear coated, Golden raw finish and Black matt. Don't hesitate to build an ultimate machine that will surpise your friends with an extraordinary look.
Material: Sanko Cr-Mo 4130, butted TT, DT and ST
Heat-treatment: dropouts, BB and HT
TT length: 20.5”, 20.75”, 21”
CS length: 13” (20.5”), 13,25” (20.75”),13.5” (21”)
HT angle: 75°
ST angle: 71°
BB height: 11.5”
Standover (BB center to TT center): 8.5”
ST height (BB center to ST top): 9.7”
Headset type: integrated (45/45 Campy spec.)
Gusset: DT integrated
BB: Spanish 68mm
Seat clamp: integrated
Dropouts: 6mm thick, 14mm size
Weight: 2.18kg / 4.81lbs. (21”)
Available spare parts: seat clamp bolt, gyro tabs, pivots, chain tensioner bolts
