level 1
为什么找不到？没有的话用什么代替啊？
2018年12月15日 16点12分
![[泪]](/static/emoticons/u6cea.png)
level 1

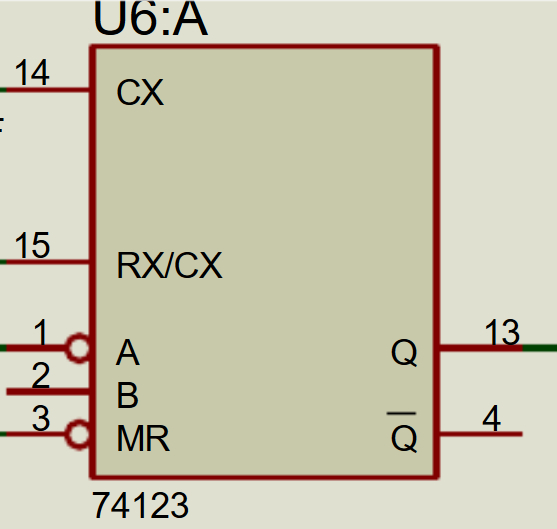

应该就是没有，我试了各种软件都没有，比如Proteus8.9，Pspice 17.2
可能的原因参考以下信息
https://e2e.ti.com/support/logic/f/151/t/763168
We do not currently have an available PSpice model for any CMOS monostable multivibrators (like the HC221). We recommend prototyping rather than simulation with this type of device. This is due to the nonlinearity factor (K) that is a function of the connected capacitor value. PSpice just plain out doesn't support modifying a model based on a passive connected to it. We have been working on a possible work around for a while, but it's unlikely that it would be available this year.
2021年01月28日 07点01分
8
可能的原因参考以下信息
https://e2e.ti.com/support/logic/f/151/t/763168
We do not currently have an available PSpice model for any CMOS monostable multivibrators (like the HC221). We recommend prototyping rather than simulation with this type of device. This is due to the nonlinearity factor (K) that is a function of the connected capacitor value. PSpice just plain out doesn't support modifying a model based on a passive connected to it. We have been working on a possible work around for a while, but it's unlikely that it would be available this year.
