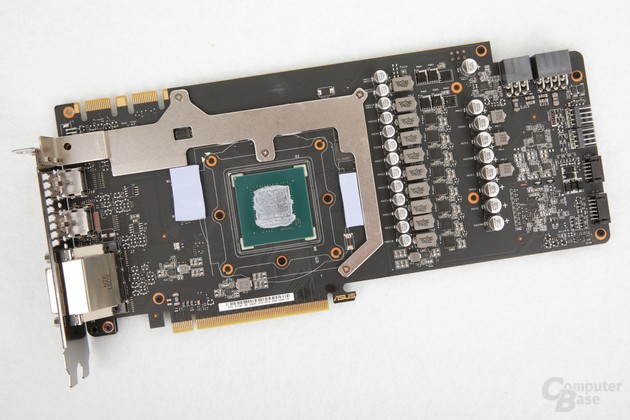

I thought many of you would be interested in seeing how custom GTX 1080 does in first detailed review. Firstly here’s new new picture of the STRIX GTX 1080 PCB. Card is equipped with 10 phases (8 GPU and 2 Memory). This fully custom design is powered by two power connectors (6+8pin).
Relative Performance in 4K
Since ROG STRIX GTX 1080 is factory-overclocked, it performs better than Founders Edition (while being 20 EUR cheaper). This card has few OC settings, so it totally up to user to decide which settings will be most suitable.
First table shows factory overclocking when TDP limit has priority and when temperature limit has priority
This chart shows overclocking results, with poor 48 MHz better results over factory performance.
That said ComputerBase confirmed the rumors from PCGamesHardware. Extreme overclocking on STRIX GTX 1080 is poor. All cards are locked to 1.25V maximum, and when the voltages gets close this value, cards become unstable. Neither bypassing VRM controller or removing TDP limit has made any difference. However once LN2 is in action, the clock frequency can to up to 2400 MHz.
Either way, the chase of mysterious 2.114 GHz clock advertised by NVIDIA has still not found its conclusion, even on this custom card.
Memory overclocking is a different story. There is no problem achieving 5600 MHz clock (11.2 GHz effective), but the GPU Tweak tool has an error showing lower clock, so some caution is advised.
结论就是不解锁电压就几乎不具备超频余量....残念啊
2016年05月30日 10点05分
1
Relative Performance in 4K
Since ROG STRIX GTX 1080 is factory-overclocked, it performs better than Founders Edition (while being 20 EUR cheaper). This card has few OC settings, so it totally up to user to decide which settings will be most suitable.First table shows factory overclocking when TDP limit has priority and when temperature limit has priority
This chart shows overclocking results, with poor 48 MHz better results over factory performance.That said ComputerBase confirmed the rumors from PCGamesHardware. Extreme overclocking on STRIX GTX 1080 is poor. All cards are locked to 1.25V maximum, and when the voltages gets close this value, cards become unstable. Neither bypassing VRM controller or removing TDP limit has made any difference. However once LN2 is in action, the clock frequency can to up to 2400 MHz.Either way, the chase of mysterious 2.114 GHz clock advertised by NVIDIA has still not found its conclusion, even on this custom card.
Memory overclocking is a different story. There is no problem achieving 5600 MHz clock (11.2 GHz effective), but the GPU Tweak tool has an error showing lower clock, so some caution is advised.
结论就是不解锁电压就几乎不具备超频余量....残念啊
