巧手大叔来了,R7 Plus换外屏教程,多图满足你的好奇心
oppor7plus吧
全部回复
仅看楼主
level 8
hiphopcicifree
楼主

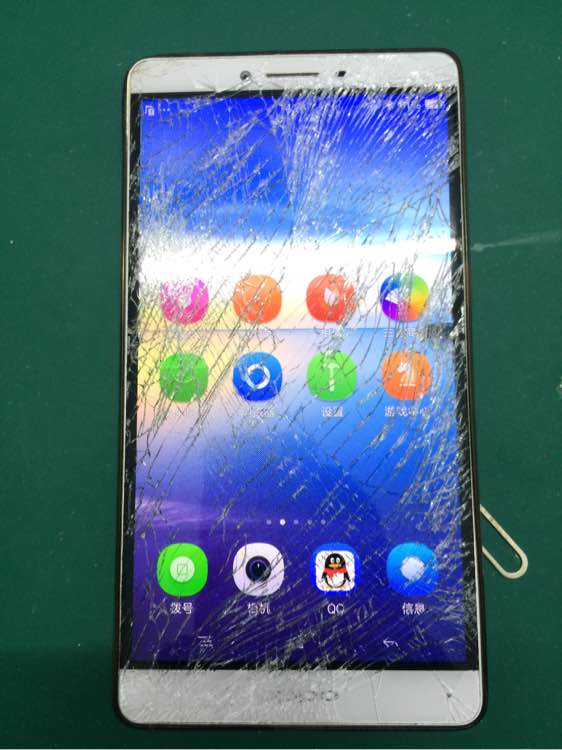

两部,第二部炒鸡碎,照换
2016年05月01日 13点05分
1
level 8
hiphopcicifree
楼主
爆力拆框,二十分钟拆下来,第一次拆的时候用了两个小时,Anyway 只要不拆爆内屏,时间不是问题
2016年05月02日 14点05分
2
level 8
hiphopcicifree
楼主

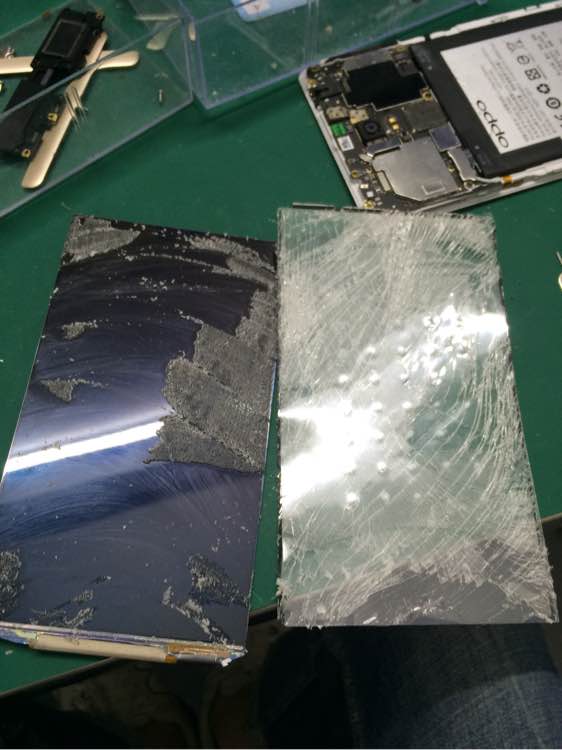

分离外屏,两部机子不是同时做的,一起发给大家看,分离完有胶,要清除干净才行,这两片都原装屏,没换过外屏,上面一层是原厂的水胶,三星屏都是用这种胶
2016年05月02日 14点05分
3
寻找逊逅的马儿
第七张图片那种情况怎么办
2018年08月16日 08点08分
level 8
hiphopcicifree
楼主
欣赏一下内屏,触控显示一体,外屏是单一层玻璃,三星产的AMOLED,没有背光,这屏没有组装的,只有三星有这技术(个人观点)
2016年05月02日 14点05分
4
level 8
猪肉脯😍
你想后压?
2016年05月02日 15点05分
5
level 8
hiphopcicifree
楼主
对
2016年05月02日 15点05分
6
level 8
hiphopcicifree
楼主
不是想,是做好了,没时间发而已
2016年05月02日 15点05分
7
level 8
hiphopcicifree
楼主
最近好忙没时间发,继续来,这个也除完胶
2016年05月04日 15点05分
8
level 8
hiphopcicifree
楼主

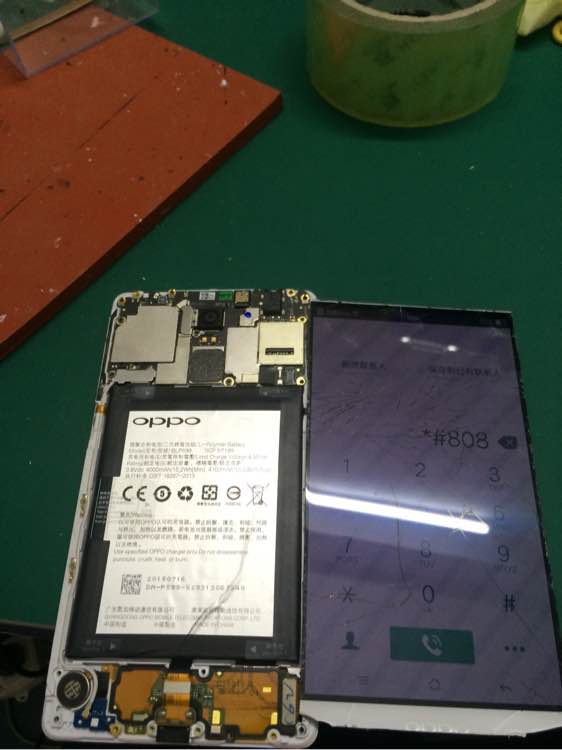

欣赏下内部结构
2016年05月04日 15点05分
9
level 8
hiphopcicifree
楼主
先看下外屏
2016年05月04日 15点05分
10
level 8
hiphopcicifree
楼主

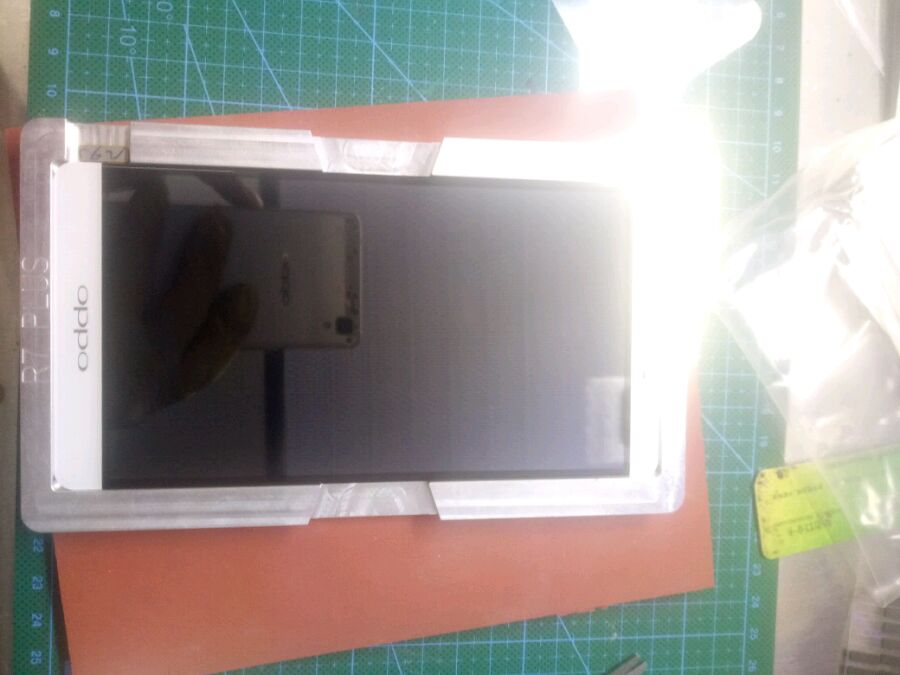

用模具完成内外屏定位
2016年05月04日 15点05分
11
level 8
hiphopcicifree
楼主
真空贴合
2016年05月04日 15点05分
12
level 8
hiphopcicifree
楼主

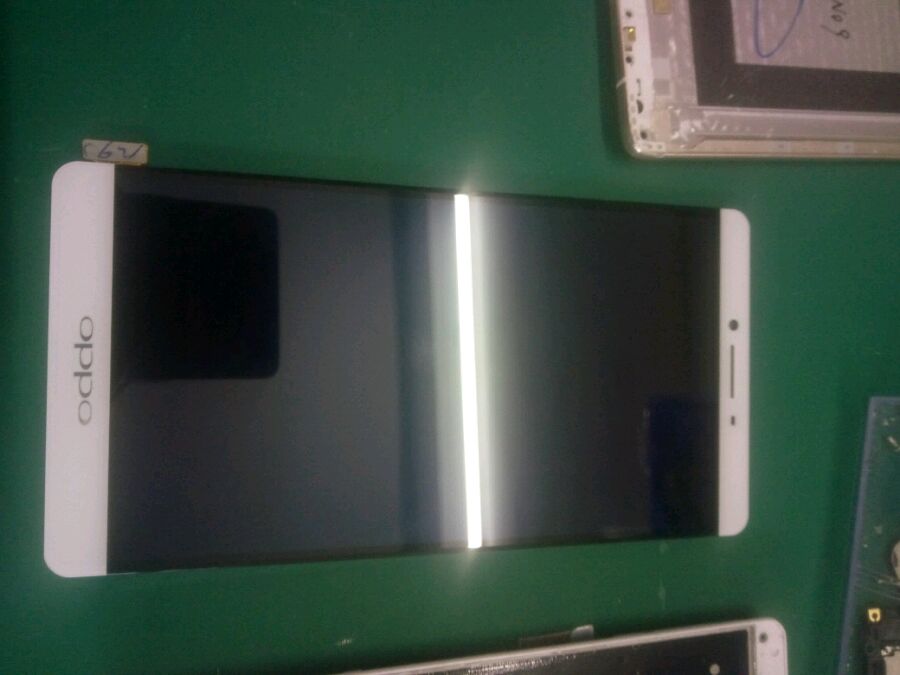

完成
2016年05月04日 15点05分
13
level 8
hiphopcicifree
楼主
测试
2016年05月04日 15点05分
14
level 8
卡嗫嚅
好6的样子 我跟第一个碎的一样 修的话得多少钱呀 明天去修
2016年05月04日 15点05分
15
hiphopcicifree
碎得怎么样都是一个价钱,反正都是换啦,我网店是138 线下散客200 手机店一般报两百多
2016年05月04日 16点05分
卡嗫嚅
好的知道了 已经在去修的路上了
2016年05月05日 03点05分
过zl客
@hiphopcicifree
我的也是玻璃屏幕碎了其他的都可以用,能换么
2016年10月19日 08点10分
