吃个饭， 一会开更。

。。。。。

@501353547，@葡萄xxx，@hhxazjl
先上效果图，

t驱动支持了？

占座，学习

快更！

开更，楼主希望能帮助到某些同学，毕竟第一次发教程，突然感觉自己萌萌哒。
首先，在某宝可以买到两种三键触摸板，一种触摸板的材质是类似塑料的感觉，另一种是玻璃纤维的感觉，楼主买到的是塑料的。 玻璃纤维版的直接换上装上2015版本的驱动即可用了，但塑料版的还要看到下面楼主的独家内容哦。
1. 拆。

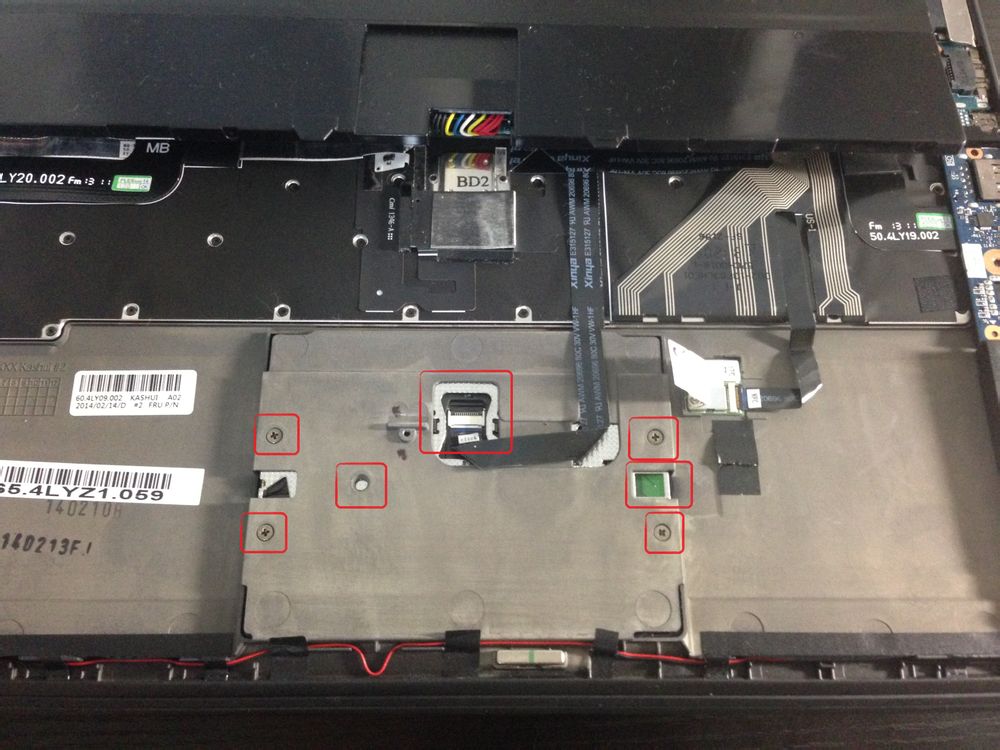

如图， 拆下D面， 扭开电池的螺丝拿下电池， 扭下如图里五个螺丝，和两个插口，
楼主的因为已经换完了，新三键触摸板只有四个螺丝，所以像图上一样废了一个螺丝。
然后是最中间的触摸板的排线（往下看）和右侧两个螺丝之间的NFC的接线。楼主因为当时过于用力，将NFC的接线完全扯了下来， 不过因为平时根本不用这个功能，所以对楼主也无所谓了。 不过真的很难拔掉。
2. 换。
先说一下这个触摸板排线的拆装。 没什么难的，楼主要强调的是，小心一点弄~~
如下图，将楼主标注的黑色开关向屏幕外侧拉起九十度。排线即可拉出。 楼主觉得这个排线比较脆弱，操作的时候小心一点就好。
这些都撤掉以后就可以从键盘那一面拿下。
换上三键触摸板以后，装上螺丝后，装这个排线。 这里真的是需要付出耐心，小心一点将排线插进去，然后将黑色开关放下就扣上了。 没有弄坏NFC排线的同学&还用NFC的同学的话，可以将NFC接线插回去，楼主的已经扯飞了。
这样就换好了， 下面是驱动部分。
3. 驱动
如楼主所说， 玻璃纤维的触摸板和塑料的 楼主都买来了，试一试手感以后楼主决定装的是塑料的，因为觉得玻璃纤维的过于滑了，但是手感这个事见仁见智了就，同学们自己决定。
玻璃纤维的触摸板 装上2015驱动可以直接驱动完美，楼主这里要写的是塑料版本。
塑料版本的同学装好了2015版本的驱动以后重启，会发现触摸板好用，三键不能用，而且驱动的面板里没有任何改变，不要急。往下看。
楼主把2015版的机器的注册表的如下路径下的内容copy给了2014版本，就OK了呢
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters
而为了方便同学们，楼主将reg脚本放在下面，同学们直接弄到txt里保存成 .reg格式 后 直接双击运行就好。 大功告成！！！ 。 2014版本的同学们也可以享受三键了。

首先第一部分，从下一行开始。
Windows Registry Editor Version 5.00[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters]"DetectMethod"=dword:00000000"RereadCommandByte"=dword:00000001"UseSmoothWin2KAccel"=dword:00000001"KBPortEnabledDuringInterruptMode"=dword:00000001"FilterTouchPadForStickButtons"=dword:00000001"ProhibitPacketMillisecond"=dword:00000320"StickProhibitTPMillisecond"=dword:00000320"Force2FClickTo1FClickOrNoClick"=dword:00000001"RMIPS2FIFOSize"=dword:00000007"RMIGpioMask"=dword:00000004"RMIBusAddress"=dword:0000002c"PS2RMIAuxPortType"=dword:00000006"ExtraCapabilities1Add"=dword:00000200"ExtraCapabilities4Add"=dword:00180000"SuppressPossibleJumps"=dword:0000007b"PacketGroupProcessing"=dword:00000001"LidCloseKey"=dword:0000e058"LidOpenKey"=dword:0000e059"LidCloseAction"=dword:00000002"LidOpenAction"=dword:00000003"LidOpenCloseFlags"=dword:00000001"ExtraCapabilities7Add"=dword:00010000"ExtraCapabilities7Mask"=dword:ffffffff"DisableDeviceViaGpio"=dword:00000001"Initialized"=dword:00000001"DetectTimeMS"=dword:000006a9"EnableKey"=dword:00000000"DisableKey"=dword:00000000"PseudoSuspendEnableKey"=dword:00000000"PseudoSuspendDisableKey"=dword:00000000"HotkeyEnableMask"=dword:07070707[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\2560]"ExtraCapabilities2"=dword:00000a00"IdentifySynaptics"=dword:00014718"ModelID"=dword:0001e2b1"CompilationDate"=dword:00c30c4b"Capabilities"=dword:00f002a3"ExtraCapabilities1"=dword:00943300"ExtraCapabilities4"=dword:0012e800"TouchPadModes"=dword:00330040"ExtraCapabilities7"=dword:00010000"Resolutions"=dword:002d8044"MaxCoordinates"=dword:00b1b694"MinCoordinates"=dword:00274922[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\PNPDisableExclusionList]"ASUS_01"="USB\\VID_0A81&PID_0103&MI_00*""ASUS_02"="USB\\VID_0A81&PID_0103&MI_01*""ASUS_03"="HID\\Vid_046d&Pid_c50e&Rev_2500""ASUS_04"="HID\\Vid_046d&Pid_c50e&Rev_2510""ASUS_05"="HID\\Vid_0A81&Pid_0103&MI_01&Col02""ASUS_06"="HID\\Vid_0A81&Pid_0103&MI_01&Col03""ASUS_07"="HID\\Vid_04B8&Pid_030E&Rev_0100&MI_*""ASUS_08"="HID\\Vid_05E3&Pid_FFE2&Rev_0001&MI_*""ASUS_09"="HID\\Vid_0A81&Pid_0103&Rev_0110&MI_*""BTC_01"="USB\\VID_0637&PID_0001*""BTC_02"="HID\\Vid_046e&Pid_6782&MI_00""BTC_03"="HID\\Vid_046e&Pid_6782&MI_01&Col01""BTC_04"="HID\\Vid_046e&Pid_6782&MI_01&Col02""BTC_05"="HID\\Vid_046e&Pid_6782&Rev_2110&MI_00""BTC_06"="HID\\Vid_046e&Pid_6782&Rev_2110&MI_01&Col01""BTC_07"="HID\\Vid_046e&Pid_6782&Rev_2110&MI_01&Col02""Dell_355"="HID\\VID_0A5C&PID_4503&REV_0100&Col01""Dell_BT350"="HID\\VID_0A5C&PID_8103""Dell_E355"="HID\\VID_0A5C&PID_8126""Dell_F355"="HID\\VID_0A5C&PID_8127""Dell_RS360"="HID\\VID_0A5C&PID_8140""Dell_R1400"="HID\\VID_0A5C&PID_8145""Dell_R2400"="HID\\VID_0A5C&PID_8146""Dell_HD410"="HID\\VID_0A5C&PID_8151""Dell_BT1"="HID\\VID_0A5C&PID_8152""Dell_UMOUSE1"="HID\\VID_0A5C&PID_8154""Dell_LD370"="HID\\VID_0A5C&PID_8155""Dell_BT2"="HID\\VID_0A5C&PID_8156""Dell_UMOUSE2"="HID\\VID_0A5C&PID_8158""Dell_LD365"="HID\\VID_0A5C&PID_8159""Dell_BT3"="HID\\VID_0A5C&PID_8160""Dell_UMOUSE3"="HID\\VID_0A5C&PID_8162""Dell_LS365"="HID\\VID_0A5C&PID_8167""Dell_LS370"="HID\\VID_0A5C&PID_8168""Dell_HS410"="HID\\VID_0A5C&PID_8169""Dell_BRCM410"="HID\\VID_413C&PID_8152""Dell_UNKNOWN01"="HID\\VID_413C&PID_8154""Dell_BRCM370"="HID\\VID_413C&PID_8156""Dell_UNKNOWN02"="HID\\VID_413C&PID_8157&REV_0100""Dell_UNKNOWN03"="HID\\VID_413C&PID_8158&REV_0100&Col01""Dell_UNKNOWN04"="HID\\VID_0EEF&PID_725E&Col*""Dell_UNKNOWN05"="HID\\VID_0EEF&PID_725E&REV_1002&Col*""Dell_MURC_01"="ACPI\\VEN_DLL&DEV_05E3""Dell_MURC_02"="ACPI\\VEN_DLL&DEV_05E2""Dell_JARAMA_01"="ACPI\\VEN_DLL&DEV_05FF""Dell_JARAMA_02"="HID\\VID_06CB&PID_1D4D&*""Dell_JARAMA_03"="HID\\VID_06CB&PID_0AC2&*""Dell_TESTAROSSA_01"="HID\\VID_06CB&PID_09F8&REV_0001&Col01""Dell_TESTAROSSA_02"="HID\\VID_06CB&PID_0AC3&*""Dell_TESTAROSSA_03"="HID\\VID_06CB&PID_1AC3&*""Dell_SPYDER_01"="HID\\VID_06CB&PID_0AF8&REV_0001&Col02""Dell_SPYDER_02"="HID\\VID_06CB&PID_0AF8&REV_0001&Col01""dWav_01"="HID\\VID_0EEF&PID_0001&REV_*""dWav_02"="HID\\VID_0EEF&PID_0001&Col02""Forward_01"="HID\\VID_05BC&PID_0001&REV_0113&MI0&Col01""Frys_01"="HID\\VID_0001&PID_0002&Col02""Fujitsu_01"="SERENUM\\FJC5000""Fujitsu_02"="HID\\Vid_0430&Pid_0002&Rev_0100&MI_00""Fujitsu_03"="HID\\Vid_0430&Pid_0002&Rev_0100&MI_01""Fujitsu_04"="HID\\Vid_0430&Pid_0002&MI_00""Fujitsu_05"="HID\\Vid_0430&Pid_0002&MI_01""Fujitsu_06"="HID\\FUJ02E5&Col02""Fujitsu_07"="HID\\FUJ02E6&Col02""Fujitsu_08"="HID\\WACOMVIRTUALHID&Col03""Fujitsu_09"="HID\\Vid_0430&Pid_0501&Rev_5001""Fujitsu_10"="HID\\Vid_0430&Pid_0501""Fujitsu_11"="HID\\Vid_0430&Pid_0530&Rev_5001""Fujitsu_12"="HID\\Vid_0430&Pid_0530""Fujitsu_13"="HID\\FUJ02E7&Col02"

第二部分，从下一行开始。
"Fujitsu_14"="HID\\VID_0430&PID_0501&REV_5002" "Fujitsu_15"="HID\\VID_0EEF&PID_722A&REV_*" "Fujitsu_16"="HID\\VID_0EEF&PID_722A&Col*" "Fujitsu_17"="HID\\VID_056A&PID_0090&REV_*" "Fujitsu_18"="HID\\VID_056A&PID_0090" "Fujitsu_19"="HID\\VID_056A&PID_00E6&REV_*" "Fujitsu_20"="HID\\VID_056A&PID_00E6" "Fujitsu_21"="HID\\VID_056A&PID_00EC&REV_*" "Fujitsu_22"="HID\\VID_056A&PID_00EC" "Fujitsu_23"="HID\\VID_0EEF&PID_*&REV_*" "Fujitsu_24"="HID\\VID_0EEF&PID_*&Col*" "Fujitsu_25"="HID\\VID_056A&PID_*&REV_*" "Fujitsu_26"="HID\\VID_056A&PID_*" "HPconsumer_01"="HID\\MSFT1234&Col02" "HPconsumer_02"="HID\\VEN_MSFT&DEV_1234&Col02" "HPconsumer_03"="HID\\VID_06CB&PID_114F&*" "HPconsumer_04"="HID\\VID_06CB&PID_1050&*" "HPconsumer_05"="HID\\VID_06CB&PID_014F&*" "HPconsumer_06"="HID\\VID_06CB&PID_114F&*" "HPconsumer_07"="HID\\VID_06CB&PID_0150&*" "HPconsumer_08"="HID\\VID_06CB&PID_1150&*" "HPconsumer_09"="HID\\VID_06CB&PID_2150&*" "HPconsumer_10"="HID\\VID_06CB&PID_3150&*" "IBM_01"="IBM0057" "IBM_02"="*IBM0057" "IBM_03"="ACPI\\IBM0057" "Itronix_01"="SERENUM\\EGX6000" "Logitech_01"="HID\\VID_046D&PID_C309&REV_1500&MI_01&Co103" "Microsoft_01"="HID\\IrDevice&Col08" "Microsoft_02"="HID\\ITEirDevice&Col05" "Microsoft_03"="HID\\VID_046D&PID_C019" "Microsoft_04"="HID\\Vid_0609&Pid_031d" "Microsoft_05"="HID\\Vid_0609&Pid_032d" "Microsoft_06"="HID\\VID_1CB6&PID_6680&REV_0100&MI_00&Col02" "Microsoft_07"="HID\\VID_1CB6&PID_6680&MI_00&Col02" "Microsoft_08"="HID\\VID_1CB6&PID_6680&REV_0100&MI_01" "Microsoft_09"="HID\\VID_1CB6&PID_6680&MI_01" "Microsoft_10"="HID\\Vid_413c&Pid_8162&Rev_0100&Col01" "Microsoft_11"="HID\\IrDeviceV2&Col08" "MSI_01"="HID\\VID_1038&PID_1000&REV_0100&MI_02" "MSI_02"="HID\\VID_1038&PID_1000&MI_02" "NEC_01"="NCT1001" "NEC_02"="*NCT1001" "NEC_03"="ACPI\\NCT1001" "NEC_04"="AUI0204" "NEC_05"="*AUI0204" "NEC_06"="ACPI\\AUI0204" "NEC_07"="HID\\VID_04F2&PID_1211&REV_*" "NEC_08"="HID\\VID_04F2&PID_1171&REV_*" "Panasonic_01"="HID\\MAT001F&Col0*" "Panasonic_02"="HID\\VID_045E&PID_007D" "Panasonic_03"="HID\\VID_0461&PID_4D03" "Panasonic_04"="HID\\VID_056A&PID_009D&MI_0*" "Panasonic_05"="HID\\VID_056A&PID_00E3&MI_0*" "Panasonic_06"="HID\\WACOMVIRTUALHID&Col0*" "Panasonic_07"="HID\\WACOMVTHID&Col0*" "Panasonic_08"="HID\\VID_056A&PID_00E3&REV_*" "Panasonic_09"="HID\\VID_062A&PID_7105&Col0*" "Panasonic_10"="HID\\VID_062A&PID_7105&REV_*" "Panasonic_11"="HID\\VID_0EEF&PID_7900&Col0*" "Panasonic_12"="HID\\VID_0EEF&PID_7900&REV_0053&Col0*" "Sharp_01"="HID\\VID_044F&PID_E000" "Sharp_02"="HID\\VID_04F2&PID_0001&MI_01" "Sharp_03"="HID\\VID_044F&PID_B304&REV_0100&COL02" "Sharp_04"="HID\\Vid_04f2&Pid_0001&Rev_0100&MI_00" "Sharp_05"="HID\\Vid_04f2&Pid_0001&Rev_0100&MI_01" "Sharp_06"="HID\\VID_1CB6&PID_6680&REV_0100&MI_00&Col02" "Sharp_07"="HID\\VID_1CB6&PID_6680&REV_0100&MI_01" "SummitPeak_01"="HID\\VID_22B9&PID_0006&REV_0000&Col02" "Toshiba_01"="HID\\TOS_BT_MOU_0004&0005"

第三部分，最后一部分，从下一行开始。
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickPS2TM3053] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickPS2TM3072] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickPS2TM3075] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickSMBTM3053] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickSMBTM3072] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\StickSMBTM3075] "GesturesValid"=dword:ffffff7f "MiddleButtonAction"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPad] "ExtraCapabilities1Add"=dword:00003000 "NonStandardClickPad"=dword:00000001 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadPS2TM3053] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadPS2TM3072] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadPS2TM3075] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadSMB2CTM3053] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadSMB2CTM3072] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\TouchPadSMB2CTM3075] "RMIDisableTPDeviceMask"=dword:00000080 "RMIDisablePassthruDeviceMask"=dword:00000040 "NonStandardClickPad"=dword:00000000 "ExtraCapabilities1Add"=dword:00000000 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SynTP\Parameters\Wdf] "KmdfLibraryVersion"="1.11" "WdfMajorVersion"=dword:00000001 "WdfMinorVersion"=dword:0000000b "TimeOfLastSqmLog"=hex(b):aa,59,f9,b1,99,42,d0,01

我的任务完成了，谢谢同学们。

楼主现在用的三键是背面铁件光滑的那种？

借楼求t450基友发注册表相关键值@校园单间出租

对了请问楼主，三键触摸板真的分玻璃和塑料版本，而不像JS说的只有塑料吗？

T440p已成功，使用最新驱动！

LZ能帮助我不？我的型号是E540。不装驱动可以用三键，装完驱动三键失灵。用了注册表依然无效。

请问楼主，你x1carbon撕膜用的是什么工具啊？我用牙签、指甲和一字螺丝刀都没有撬开屏幕的四角！
我也是看着那个磨砂的膜真实万分不爽啊！
楼主撕膜后有什么问题出现吗？

建议吧主加精啊，楼主用心了，原来@我没有蓝

重要参考，准备给x240换个三键触摸板。马克

感觉T460s那种毛玻璃的触摸板好很多
