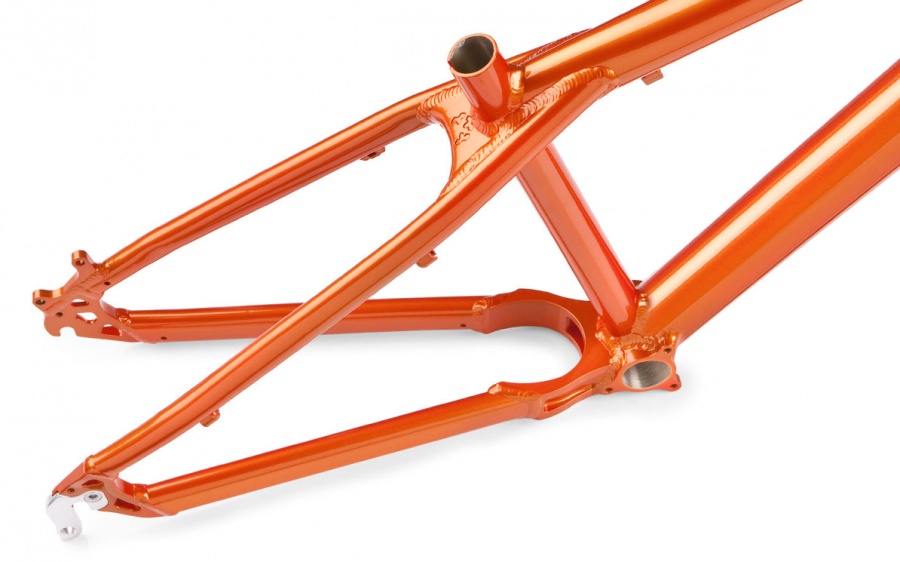

Ultra light 4X/dual slalom/freeride frame made of butted and heat treated 7005 aluminium tubes. Light and stiff with perfect geometry, very fast out of the gate and easy to control in the corners. One of the most popular 4X frames in 2011 season now comes with a hydroformed down tube perfectly fitted to the new tapered head tube. This gives a much stronger connection than a standard welded gusset and looks much cleaner. Head tube takes the Blaze or Flash headsets and all forks with 1.1/8” or tapered steerer. New double butted top tube with increased thickness in the head tube area. New custom BB-CS yoke delivers lots of tyre clearance and increased stiffness. New profiled curved seat stay gusset. Replaceable gear hanger. BB shell with ISCG-03 mount.Dropouts: 135x10mm; BB: Euro 68mm; Headsets: tapered (34mm/49,57mm); Seat post diam.: 27.2mm. Seat clamp diam.: 31.8mm; Size: 13.5”. Weight: 2.05kg / 4.52lbs. Recommended fork travel: 80-130mm.
