Error in job Job-kalan: The volume of 10 elements is zero, small, or negative. Check coordinates or node numbering, or modify the mesh seed. In the case of a tetrahedron this error may indicate that all nodes are located very nearly in a plane. The elements have been identified in element set Err Elem Vol Small Neg Zero.
Job Job-kalan: Analysis Input File Processor aborted due to errors.
Error in job Job-kalan: Analysis Input File Processor exited with an error.I

Error in job Job-load: Too many attempts made for this increment
Job Job-load: Abaqus/Standard aborted due to errors.
Error in job Job-load: Abaqus/Standard Analysis exited with an error - Please see the message file for possible error messages if the file exists.
Job Job-load aborted due to errors.I

大神你在哪里？

大神你在哪里

这种问题的原因很多，可能模型不合理，网格划分不好，分析步有问题
建议先检查下分析步和网格划分

The job input file "Job-1.inp" has been submitted for analysis.
Job Job-1: Analysis Input File Processor completed successfully.
Error in job Job-1: Too many attempts made for this increment
Job Job-1: Abaqus/Standard aborted due to errors.
Error in job Job-1: Abaqus/Standard Analysis exited with an error - Please see the message file for possible error messages if the file exists.
Job Job-1 aborted due to errors.I

分析步里面改一下增量试试吧，估计是在最大次数内没有收敛，然后才报错的吧

重要的是第一句，模型不收敛，导致后续的诸多问题。不收敛的原因很多，楼主可在模型树中查找模型失败的原因，如是否本构关系建立的问题，或者位移、约束等，实在不行，就只能重新建一遍

应该是不收敛，要是问题本身没有复杂的接触之类的东西，网格划分不是很密很多，差不多是边界条件的问题

你好，我也遇到了这个问题，最后你是怎么解决的呢？能告诉我吗？

请问你是不是用到了分割平面，进行划分网格

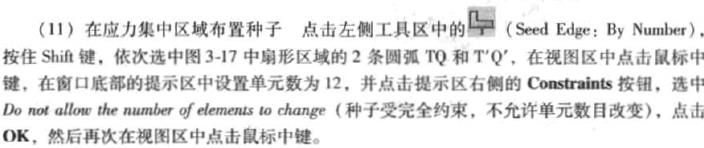

解决方案如上图

让种子完全受约束

接触法线定义反了。

楼主你当时是怎么解决这个问题的？急求！正好现在也碰到这个问题了，谢谢了

你好，我也遇见了你之前的问题了Error in job daifeng-test-1: The volume of 33 elements is zero, small, or negative. Check coordinates or node numbering, or modify the mesh seed. In the case of a tetrahedron this error may indicate that all nodes are located very nearly in a plane. The elements have been identified in element set ErrElemVolSmallNegZero.你当时是怎么解决的，困在这很久了，多谢赐教

还是这个问题！

楼主还在吗，同求解决方法
