Error Report For : Documents\BACKUP~1.SCH 21-Apr-2011 18:59:34
#1 Warning Unconnected Net Label On Net D0   BACKUP~1.SCH D0
#2 Warning Unconnected Net Label On Net D1   BACKUP~1.SCH D1
#3 Warning Unconnected Net Label On Net D2   BACKUP~1.SCH D2
#4 Warning Unconnected Net Label On Net D3   BACKUP~1.SCH D3
#5 Warning Unconnected Net Label On Net D4   BACKUP~1.SCH D4
#6 Warning Unconnected Net Label On Net D5   BACKUP~1.SCH D5
#7 Warning Unconnected Net Label On Net D6   BACKUP~1.SCH D6
#8 Warning Unconnected Net Label On Net D7   BACKUP~1.SCH D7
#9 Warning Unconnected Net Label On Net D7   BACKUP~1.SCH D7
#10 Warning Unconnected Net Label On Net D7   BACKUP~1.SCH D7

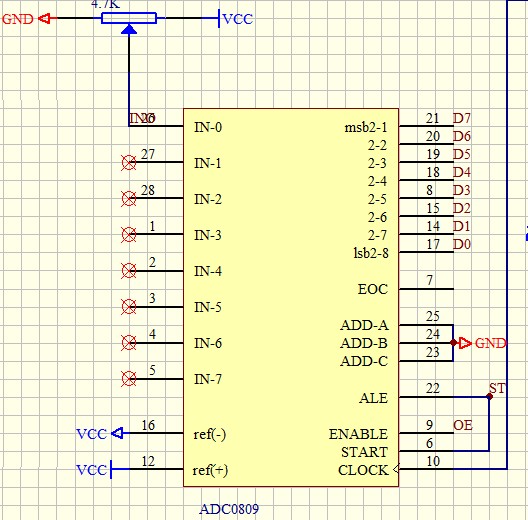

#11 Error Multiple Net Identifiers : BACKUP~1.SCH D0 At (1240,1220) And BACKUP~1.SCH D14 At (1240,1220) #12 Error Multiple Net Identifiers : BACKUP~1.SCH D1 At (1240,1230) And BACKUP~1.SCH D13 At (1240,1230) #13 Warning Unconnected Input Pin On Net Net_1   BACKUP~1.SCH(-1 @420,620)
#15 Error Floating Input Pins On Net Net_1Pin BACKUP~1.SCH(-1 @420,620)
#16 Warning Unconnected Input Pin On Net Net_2   BACKUP~1.SCH(-2 @420,600)
#18 Error Floating Input Pins On Net Net_2Pin BACKUP~1.SCH(-2 @420,600)
#19 Warning Unconnected Input Pin On Net Net_3   BACKUP~1.SCH(-3 @420,580)
#21 Error Floating Input Pins On Net Net_3Pin BACKUP~1.SCH(-3 @420,580)
#22 Warning Unconnected Input Pin On Net Net_4   BACKUP~1.SCH(-4 @420,560)
#24 Error Floating Input Pins On Net Net_4Pin BACKUP~1.SCH(-4 @420,560)
#25 Warning Unconnected Input Pin On Net Net_5   BACKUP~1.SCH(-5 @420,540)
#27 Error Floating Input Pins On Net Net_5Pin BACKUP~1.SCH(-5 @420,540)
#28 Warning Unconnected Input Pin On Net Net_27   BACKUP~1.SCH(-27 @420,660)
#30 Error Floating Input Pins On Net Net_27Pin BACKUP~1.SCH(-27 @420,660)
#31 Warning Unconnected Input Pin On Net Net_28   BACKUP~1.SCH(-28 @420,640)
#33 Error Floating Input Pins On Net Net_28Pin BACKUP~1.SCH(-28 @420,640)
End Report

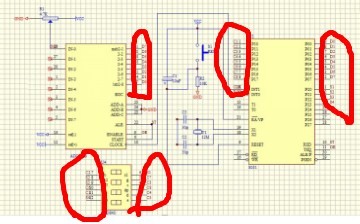

首先声明，我是声乐专业的。
对这个一点都不懂，就是误选中这个选修课的。。。对这种东西纯粹是小白，。。。
这个就是期末作业。我都做了半个月了还不行，懂的人帮帮忙。
小女子感激不尽。。。

http://www.51zxw.net/study.asp?vip=2465085 这里面有详细的 dxp画图 视频
PADS 的飘过
好像你这有问题


把原题发我邮箱里面看看，[email protected]，或[email protected]

net下面要加wire的，否则报错

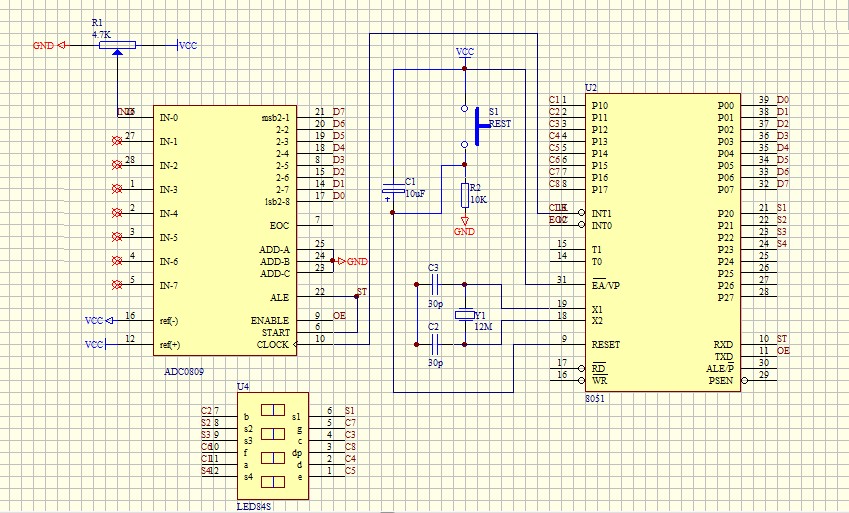

你的电器规则出问题了！ 原理图里红的圆圈里有把叉的就是出问题的地方！

美女的魅力啊！！！问题原因大家都说了，纯友情顶贴

声乐的选修这个干嘛，学分也不能这么混

warning可以忽略

声乐专业选修这个课，汗颜啊

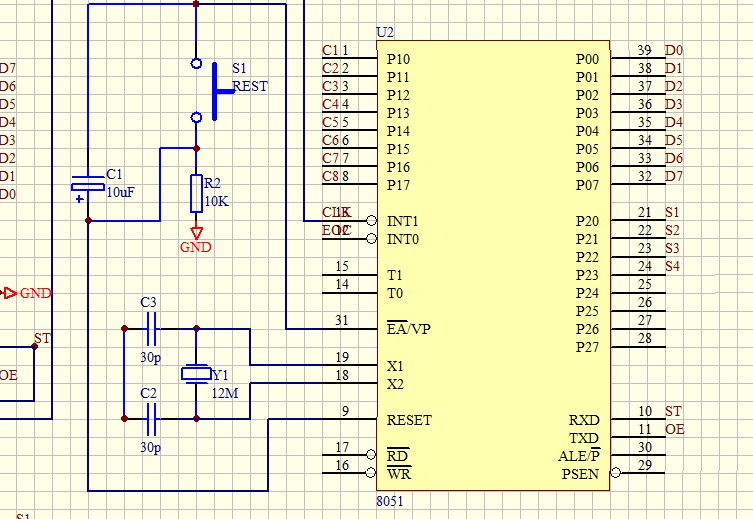

原理图有问题，晶振这么画不能起振吧？

这图是网上下载的吧？？
